The "Remote Speed " help you to solve the trouble that manually adjusting the feeder speed

Page view

 INTRODUCTION

      For safety and beauty, the vibratory feeder controller as an important part of the vibratory feeding system is usually installed in the control cabinet,and sometimes you need to open the door of control cabinet frequently to adjust the output voltage of the controller. For convenience, The Remote Speed of our controller can help you to adjust the output voltage remotely.
      There are three methods to achieve "Remote Speed" : Linear Potentiometer, 1~5 V analog voltage signal and 4~20 mA analog current signal.

READY

      You need to prepare a vibratory feeder controller (Product Type: SDVC20S),PLC , a Linear Potentiometer, 15 Pin Plug and some wires, As follows:
Figure 1: Vibratory feeder controller (Product Type: SDVC20S)
Figure 2: PLC
Figure 3: Linear Potentiometer
Figure 4: 15 Pin Plug

Using Potentiometer To Achieve Remote Speed Control

  • The schematic and physical diagram of wiring potentiometer to the controller are as follows:

Figure 5: Schematic diagram of potentiometer wiring

Figure 6: Physical diagram opotentiometer wiring

  • The video 1 will teach you in detail how to adjust the Linear Potentiometer achieving the function .
Video 1:  The method of adjusting Linear Potentiometer to control the feeder speed


Using 1~5 V Signal To Achieve Remote Speed Control

  • The schematic and physical diagram of wiring the 1~5 V signal to the controller are as follows:

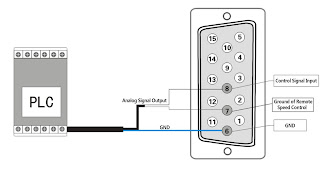

Figure 7: Schematic diagram of 1-5 V PLC wiring

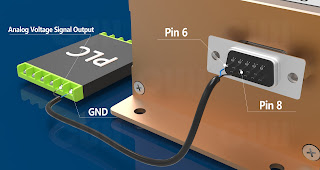

Figure 8: Physical diagram o1-5 V PLC wiring
  • The video 2 will teach you in detail how to use the 1~5 V Signal to control   feeder speed remotely.
Video 2:  The method of 1-5 V Signal controlling the feeder speed


Using 4~20 mA Signal To Achieve Remote Speed Control

  • The schematic and physical diagram of wiring 4~20 mA signal to the controller are as follows:
Figure 9: Schematic diagram of 4~20 mA  PLC wiring


Figure 10: Physical diagram of 4~20 mA  PLC wiring
  • The video 3 will teach you in detail how to use the 4~20 mA Signal to control  feeder speed remotely.
Video 3:  The method of 4~20 mA Signal controlling the feeder speed


NOTE

  1. When the Remote speed is valid, the "Remote ctrl" indicator on the panel of the controller lights up.
  2. If you find the feeder speed increased with Anticlockwise rotating the potentiometer, when using the potentiometer to adjust the feeder speed, you could exchange the location of the +5 V wire and the GND wire, so that the feeder speed increase with clockwise rotating the potentiometer.
  3. When the Voltage signal above 0.5 V in using the 1-5 V Signal to control feeder speed, the Remote Speed is valid.
  4. When the Current signal above 2 mA in using the 4-20 mA Signal to control feeder speed, the Remote Speed is valid.
  5. When using the controller, if you have any questions, please contact us or Leave a message below.
  6. Each of our products have this "Remote Speed" function.
